Description
The CB8 2K camera shows what an easy home camera truly looks like - 100% wire-free to go anywhere, motorized to take in 360-degree field-of-view, and smart enough to provide automated home protection. Features like person detection, auto-tracking, color night vision make the CB8 2K deliver same or even better performance when compared with its wired equivalent, while the camera completely ditches the complex installation of an outdoor camera. By working with the optional solar power panel, the CB8 2K can be a camera that you set and forget.
The CB8 2K features possibly the biggest battery capacity among outdoor pan & tilt security cameras in the market. And where other cameras are limited by the socket location or the length of a connecting wire, the wireless CB8 offers limitless options. Set it where you want it – wherever it gets the best views.
Don’t feel like climbing up and down a ladder to recharge the camera? Worried about losing power quickly due to frequent activity detection?
Connect your camera to the compatible EZVIZ Solar Panel³ for constant power and forget about any low-battery anxieties once and for all.
The camera’s pan-and-tilt design and 2K resolution work in tandem to give you the complete picture with stunning details. Just one single CB8 2K will do the job of keeping an eye on your running dog in the garden or a delivery person heading to your front door.
When in action, the camera makes it hard for anyone to go unnoticed. Integrating a PIR sensor and the person-shape detection algorithm, the CB8 2K is smart enough to alert you to moving people rather than trivial objects. What’s better, it locks on the detected person and can track the whole process of an activity.
The camera’s active defense function provides an extra layer of protection. Upon detection of a moving person, the camera will set off a loud siren and flash two spotlights⁴ for immediate on-site deterrence.
Thanks to two built-in spotlights, the camera can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost.
| Specifications | |
|---|---|
| Model | CS-CB8 (3MP) |
| Camera | |
| Image Sensor | 1/2.8” 3-Megapixel Progressive Scan CMOS Sensor |
| Minimum Illumination | 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories) |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical) |
| PT Angle | Pan: 340°, Tilt: 65° |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| Night Vision | Up to 49 ft / 15 m |
| Video & Audio | |
| Max. Resolution | 2304 × 1296 |
| Frame Rate | 15fps. Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 1.5 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128 bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Minimum Network Requirement | 4 Mbps |
| Function | |
| Smart Alarm | Smart Human Motion Detection |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Heart Beat, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD Card (Up to 256 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
| IP Grade | Weatherproof Design |
| Power Supply | DC 5V / 2A (Adapter needs to be purchased separately) |
| Power Consumption | Max. 10W |
| Battery Capacity | 10400 mAh |

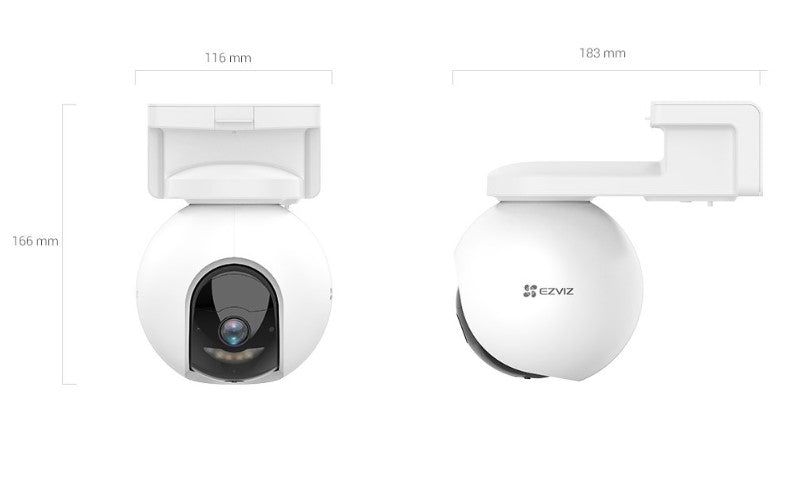

| Product Dimensions | 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch) |
| Packaging Dimensions | 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch) |
| Weight | Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz) |
| In the box | |
| In the box | - CB8 2K Camera |
| - Drilling Template | |
| - USB Cable | |
| - Screw Kit | |
| - Quick Installation Guide | |
| - Regulatory Information | |
| - Quick Start Guide | |
| Certifications | |
| Certifications | CE / FCC / WEEE / RoHS / REACH / UL |
