Description

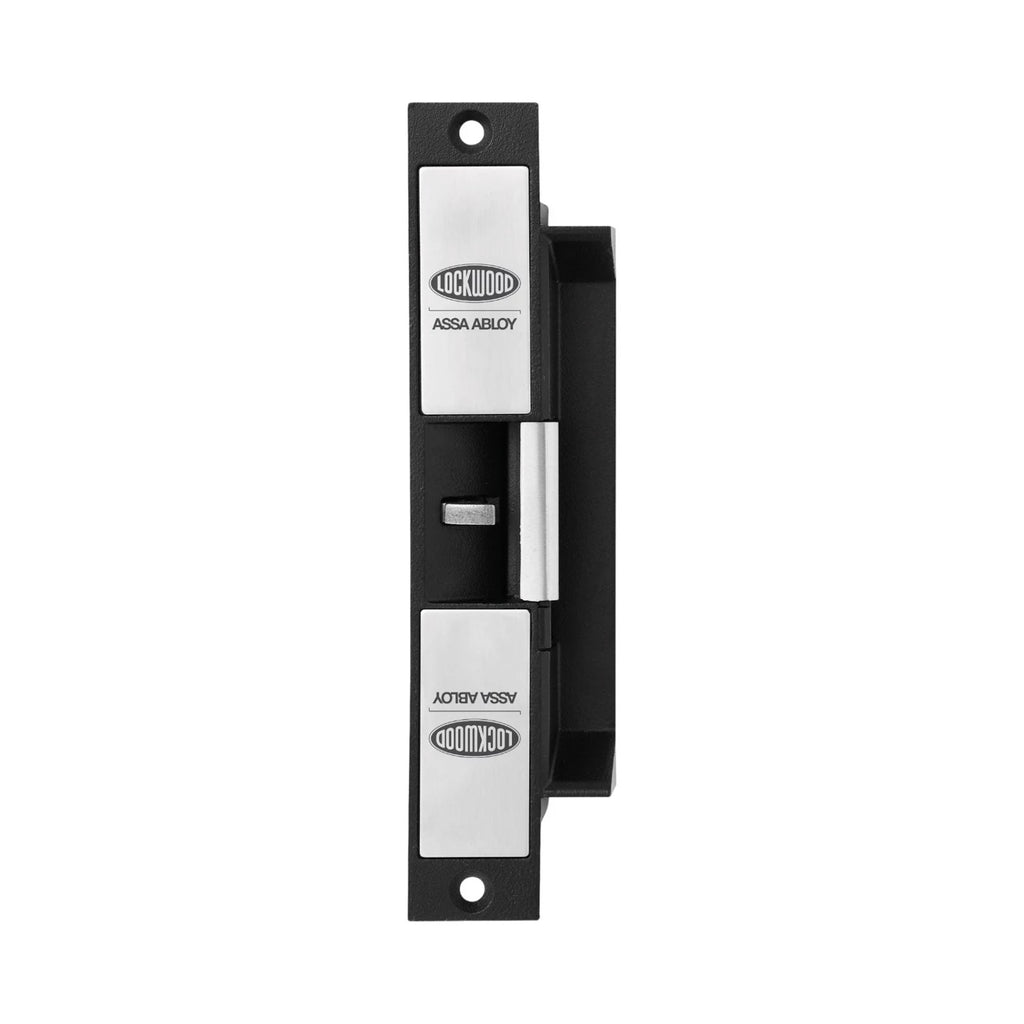

The Lockwood Padde Series ES2000 series electric strikes are fully monitored high security products manufactured from stainless steel and designed for use with all access control systems. The strikes are suitable for use with hinged doors which require either fire or security control as part of a building management system.
Key Features:
- Fully monitored – strike locked and door latched
- Fail safe/fail secure changeable on site
- High security
- 4 Hour fire rating
- 850kg holding force
- 1 million cycles endurance rating
- Cast stainless steel body
- Stainless steel locking pins
- SCEC Endorsed
- Low Current consumption
- Max 175ma @12Vdc
- Solenoid rated for continuous use
- Mounting kit supplied as standard
- 5 Year Tricare Warranty (Padde Series)
Applications
- High traffic areas
- Fire rated door sets
- Open in/open out doors
- Suitable for use with all access control systems
| Voltage | 12Vdc |
| Current | 175 mA @ 12Vdc |
| Solenoids | Solenoids are rated for continuous use |
| Monitoring |
Solenoid Monitor – 1 amp NO/NC microswitch Door/Latch Monitor – 1 amp NO/NC microswitch |
| Holding Force | 850kg Static Strength Rating |
| Endurance | Cycle tested to 1,000,000 operations |
| Latch | Suitable for 15mm latch bolt with 3mm door gap |
| Environment | Operational temperature range – 20°C to +60°C |
| Body | Solid Stainless Steel Construction |
| Keeper |
Stainless Steel |
