Description

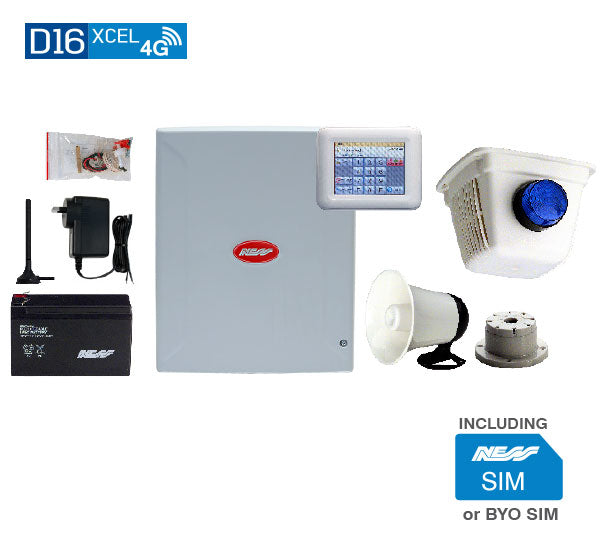

The Ness D16XCEL4G Navigator Panel & Siren Kit is an industry-leading home security system. It includes 8 or 16 alarm zones, up to 4 Navigator Keypads, and 56 user codes for PIN, Radio Key, or Access Card operation. It also supports an optional Ness Radio Interface for full wireless integration, two area partitioning, a Real Time Clock with AutoTime features, and 3 Door Access Controller with Weigand Prox or Fingerprint readers. Control can be managed remotely through an optional ethernet adapter and Ness iComms/aComms apps.
• 8 or 16 alarm zones (D8XCEL4G/D16XCEL4G)
• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads
• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.
• Optional Ness Radio Interface for fully integrated wireless security.
• Programmable Two Area partitioning can split the panel into two independent areas plus a common area.
• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time-based user control.
• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.
• Supports control via the internet using Ness iComms/aComms iPhone/iPad and Android apps and an optional ethernet adapter.
• Home Mode allows partial arming, (eg, perimeter security overnight).
• Day Mode feature allows daytime monitoring of fire doors, coolrooms, etc.
• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.
• Keypad Panic and Duress feature.
• Two button arming feature.
• Fire Alarm feature with different siren tones.
• Highly flexible zone to output mapping.
• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.
• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).
• Siren chirp and strobe flash on arming with radio key.
• Quiet chirps option on arm/disarm by radio key.
• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.
• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).
• Optional output expander.
• Enhanced serial data input/output via RS232.
• Automatic reset fuses.
• Programmable Reset Output lockout.
• 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or NessComms™.
• Standard defaults to suit most applications.
• Easy programming by keypad or NessComms™ software by direct connect.
• All programming data is permanently stored in a non-volatile memory.
• All inputs and outputs are heavily protected against lightning and high voltage supply transients.
• High efficiency DC power supply with dual 17VAC/20VDC power input
Communicator
• 4G Communicator onboard
• Direct-connect upload/download using NessComms™ software.
• View system status and arm/disarm using NessComms™.
• Remote control of outputs via telephone with voice prompts.
• Operation via SMS messaging
• Programming via SMS
• Alarm reports via SMS self-monitoring or Central Station
• Central Station monitoring in ARMOR IP and CID formats
• Remote operation via the free NessXCEL SMS app
BOX DIMENSIONS (W x H x D) | 235 x 300 x 90 mm (Plastic housing) |
POWER INPUT | 17VAC or 20VDC |
AUX POWER OUTPUT | 13.8v DC @ 800mA |
QUIESCENT CURRENT DRAW | 80mA with 1 keypad |
RECHARGEABLE BATTERY | 12 volt 7.0 Amp/hour Sealed lead Acid |
BATTERY CHARGING CURRENT | 350mA maximum, current limited |
DYNAMIC BATTERY TEST | Backup battery is tested under load, hourly and on arming |
FUSES | 2 Amp auto resetting / Siren output & Reset output. 500mA auto resetting / 12 volt auxiliary outputs. 200 mA auto resetting / Strobe output |
ZONE OUTPUTS | 8 or 16 zone inputs (D8XCEL4G/D16XCEL4G) 2 x 24hr tamper inputs |
END OF LINE RESISTOR | Choice of 12 programmable values including N/C. Default 2200 Ohms (2.2k) |
MAXIMUM KEYPADS | 3 (Sold Seperatly). |
INTEGRATED RADIO OPTIONS | Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 16 radio zones |
SERIAL HEADER | Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data |
INTEGRATED ACCESS CONTROL | Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers |
SIREN OUTPUT | On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers |
STROBE OUTPUT | 12v DC timed output. Maximum 2 x 1 Watt strobe lights |
RESET OUTPUT | 12v DC timed output. Max. 3 x 12v piezo screamers |
EQUIPMENT POWER OUTPUT | 13.8v DC output for powering detectors and other equipment. Maximum 500mA |
AUX OUTPUTS | Multi-pin connectors provides outputs Aux1~4, Aux5~8 |
