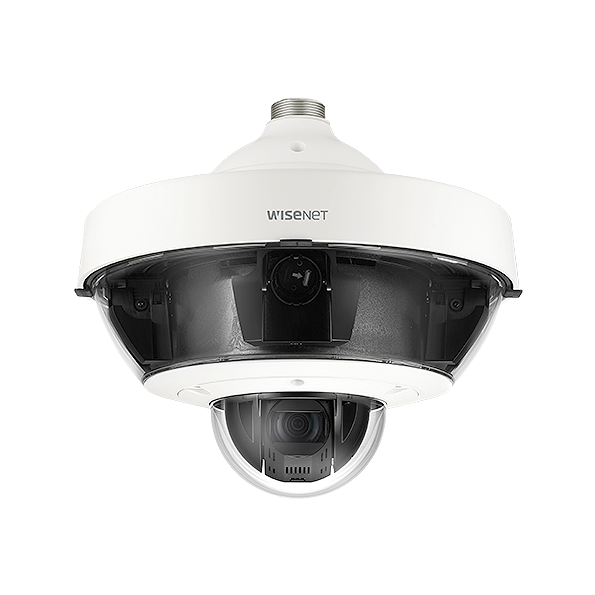

Introducing the Wisenet P Series CT-PNM-9322VQP, a revolutionary multi-directional + PTZ NW camera designed to provide unparalleled surveillance coverage with its innovative features and modular design. With exchangeable lens modules and a wide range of resolutions, this camera offers exceptional flexibility to meet the diverse needs of any surveillance application.
Contact Cctvimporters for the availability of this product!
Key Features:
-
Modular Design: This camera features exchangeable 4ea x 2M / 5M lens modules, allowing for customizable configurations to suit specific surveillance requirements. With resolutions ranging from 8MP to 20MP, you can achieve the perfect balance between image quality and coverage.
-
High Frame Rate: Capture fast-moving objects with clarity and precision thanks to the maximum frame rate of 60fps@2M in H.265/H.264 formats, ensuring smooth and fluid video playback.
-
Wide Dynamic Range: Benefit from exceptional image quality in high-contrast environments with WDR technology, offering up to 150dB with 2M lens modules and 120dB with 5M lens modules, ensuring clear visibility in challenging lighting conditions.
-
Versatile Lens Options: Choose from a range of fixed lens options, including 2.4mm, 2.8mm, 3.6mm, 6mm, and 12mm for 2M modules, and 3.7mm, 4.6mm, and 7mm for 5M modules, allowing for precise customization of the camera's field of view.
-
Advanced Compression: Utilize H.265, H.264, and MJPEG codecs along with WiseStreamⅡ technology to optimize bandwidth and storage efficiency while maintaining high-quality video streaming.
-
Robust Construction: With an IP66 weatherproof rating and IK10 vandal-resistant rating, this camera is built to withstand harsh outdoor environments, ensuring reliable performance even in challenging conditions. Additionally, the camera features SD / SDHC / SDXC memory 5 slots for convenient on-board storage options.
-
Day & Night Functionality: Enjoy round-the-clock surveillance with Day & Night (ICR) functionality, ensuring clear and detailed images even in low-light conditions.
-
Streamlined Installation: The camera features a new install base design, making it easier than ever to install and deploy, saving you time and effort during setup.
The Wisenet P Series CT-PNM-9322VQP multi-directional + PTZ NW camera is the ultimate surveillance solution for applications that demand flexibility, reliability, and uncompromising performance. Whether you're securing large outdoor areas, monitoring critical infrastructure, or enhancing security in commercial facilities, trust this camera to deliver exceptional surveillance coverage day and night.
| Product Short Info | 10MP to 22MP Multi-directional + PTZ NW Camera |
|---|---|
| Form Factors | PTZ |
| Resolution | 20 Megapixel |
| Lens | 4.44 ~ 142.6mm (32x), 32x Digital Zoom |
| IR | No |
| Max FPS at all resolutions | 60 FPS |
| WDR | 120dB |
| Codec Supported | H.264, H.265, MJPEG |
Datasheets
Warranty
5 years warranty
Shipping
FREE SHIPPING ON ALL ORDERS OVER $200 AUSTRALIA WIDE
All orders are delivered using Australia Post shipping method and this is the most efficient method of delivery.
A flat rate of $12 applies to all orders under $200.
Delivery typically takes 3-5 business days all over Australia including Tasmania.
New Zealand: 10-15 business days.
WISENET P Series
Hanwha Vision’s P series camera line includes several unique categories that showcase our ability to deliver the best in AI video analytics, multi-sensor technology, and innovative design
Wisenet P series AI Cameras
Cover wide areas with one camera
Wisenet P series multi-sensor cameras are equipped with multiple sensors, allowing them to effectively monitor wide areas with just a single device.
Multi-directional cameras can simultaneously monitor multiple directions
without any blind spots.
By installing Wisenet multi-sensor cameras, the cost of system installation and maintenance is reduced while successfully monitoring wide areas.
Remote motorized PTRZ control for easy installation
The PNM-9084QZ has become more compact and lighter to make installation a lot easier even on a ladder.
The PNM-9084RQZ, PNM-9085RQZ and PNM-9084QZ support remote PTRZ (Pan, tilt, rotate and zoom) setup,
saving installers time and effort of making adjustments on a ladder to change the setting.
Built-in IR illuminator for monitoring in low light environment
The PNM-9084RQZ/9085RQZ has built-in IR illuminator to each of the four lenses.
Each lens and its IR illuminator move together when users control the lenses, producing clear images up to 30 meters even in low-light environments
Natural and clearer image
When using a fisheye camera, it brings low image quality and image distortion at each edge of the image. However, the Multidirectional camera with 4 sensors brings almost non image distortion and shows clearer image at each edge of the image.
Improve bandwidth by up to 99% using WiseStream II
When Hanwha Techwin’s original video compression technology WiseStream II is combined with H.265 compression,
the bitrate data is reduced by up to 99% compared to current H.264 technology. The costs of configuring and maintaining the system are also greatly reduced, while still maintaining the same pixels and high quality.
True WDR performance
Even with backlight, Wisenet’s cutting-edge WDR technology addresses a limitation found in conventional WDR cameras while producing clear and vivid images. WDR improves the accuracy of an image by resolving the difference in brightness.
Optimized for indoor and outdoor environments
Wisenet P series panoramic and multi-directional cameras are suitable to monitor even the smallest details in a wide area. They are ideal for applications such as warehouse, shopping mall entrances, train stations,
parking lots, and more supporting IP66, IK10.
Hallway view for monitoring vertical shaped areas
In a vertical shaped environment, such as corridors, hallways, tunnels, or aisles, traditional horizontal shaped videos focus on unnecessary edges of the area causing bandwidth and storage waste. The Hallway view, 3 : 4 and 9 : 16 aspect ratio image is created : a vertically oriented video that maximizes image quality in narrow locations.
A comprehensive range of intelligent video/audio analytics
Wisenet P series multi-sensor cameras support a variety of exclusive video and audio analytics, providing enhanced monitoring solutions and market intelligence.
