Description
- 2x Dahua 8MP TiOC 2.0 Turret Camera black - DH-IPC-HDW3849H-AS-PV-ANZ(BLK)
- 1x Dahua 4-Channel WizSense AI NVR - DHI-NVR4104HS-P-AI/ANZ
- 1x Western Digital Purple Surveillance HDD
2x Dahua 8MP TiOC 2.0 Turret Camera - DH-IPC-HDW3849H-AS-PV-ANZ: These two Dahua 8-megapixel TiOC 2.0 turret cameras are powerful surveillance devices designed to provide exceptional security coverage. With their high-resolution imaging capabilities, they deliver clear and detailed footage, ensuring that every critical detail is captured. Equipped with TiOC (Temperature, Input/Output, and Communication) technology, they can withstand extreme temperatures, offer input/output ports for external device integration, and provide robust communication options for seamless connectivity. These cameras excel in both daylight and low-light conditions, thanks to their Starlight technology, making them ideal for 24/7 surveillance. With advanced features like intelligent analytics and weatherproof construction, they are a reliable choice for various security applications.

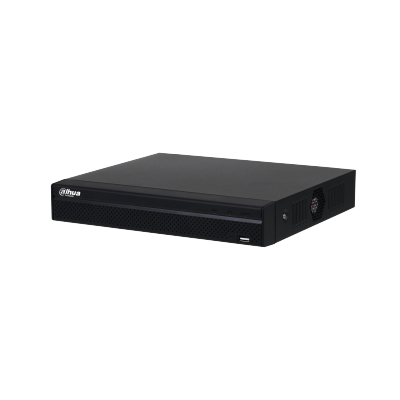

1x Dahua 4-Channel WizSense AI NVR - DHI-NVR4104HS-P-AI/ANZ: The Dahua 4-channel WizSense AI NVR is the central hub of your surveillance system. It's designed to work seamlessly with the included cameras and offers advanced features such as AI-powered analytics. This NVR can process and store video footage from up to four cameras simultaneously, ensuring that your surveillance data is managed efficiently. Its WizSense AI capabilities enable it to detect and analyze events, reducing false alarms and providing intelligent alerts. With its user-friendly interface, you can easily manage your cameras, view live feeds, and review recorded footage. The NVR's compact design and robust construction make it suitable for various installation environments.

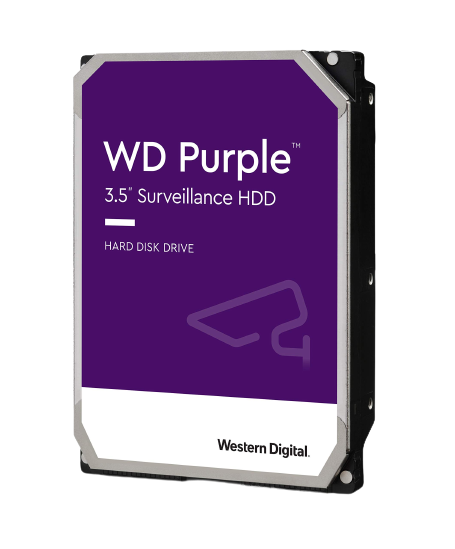

1x Western Digital Purple Surveillance HDD: The Western Digital Purple Surveillance HDD is a high-performance hard drive purpose-built for video surveillance applications. It's optimized for continuous recording and playback, ensuring that your surveillance data is stored securely and reliably. With a large storage capacity, it can accommodate the video footage from multiple cameras over an extended period. Its surveillance-specific firmware is designed to handle the demands of 24/7 video recording, including the constant reading and writing of data. This HDD is a crucial component of your surveillance kit, providing ample storage for your security recordings.
Together, this kit offers a comprehensive and reliable surveillance solution, combining advanced cameras, an intelligent NVR, and a high-performance storage solution. Whether for residential, commercial, or industrial use, this kit ensures that your security needs are met with top-notch technology and features.
Dahua TIOC Advanced 2.0 IPC-HDW3849H-AS-PV-ANZ-0280B-S3 Dahua 8MP AI Active Deterrence Full color Starlight IP Turret Camera
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to act fast on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.
Key Features:
- 8 MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, and tripwire (the two functions support the classification and accurate detection of vehicles and humans).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker.
- 12 VDC/PoE power supply.
- IP67 protection.
- Sound and light alarm (red and blue lights).
- SMD 3.0.
- One press arming/disarming through alarm input.
Functions:
Siren and Light Active Deterrence: Dahua siren and light active deterrence network camera support the light alarm and voice alarm when a perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection and supports customized voice importing.
Smart Dual Illuminators: Dahua Smart Dual Illuminators technology adopts a smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the warm light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshots and videos with a full-color image. When the target is out of the monitoring area, the warm light is off and the IR illuminator is on, which reduces light pollution efficiently.
SMD: With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.
One-tap Disarming: Dahua One-tap Disarming function, which is convenient and easy to operate, is the switch for event linkage. Customers can close and recover event linkage through a mobile App, which meets multi-scenario needs.
Cyber Security: Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, wide voltage) IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
Dahua DHI-NVR4104HS-4P-4KS2/L 4 Channel Compact 1U 4PoE 4K H265 Lite Network Video Recorder
Dahua NVR4104-4KS2/L is introduced as the Lite series NVR that supports for 4K and H.265 encoding technology with excellent performance at an affordable price. For applications where image details are highly required, it delivers the capability of 4K resolution processing. The NVR can be served as edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control. Due to its cost-effective and easy-to-install design, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.
Key Features:
- New 4.0 user interface, Security baseline 2.1
- H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
- Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive
decoding - Supports mainstream cameras of ONVIF and RTSP protocols
- P2P remote surveillance, video play on mobile device
- VGA/HDMI simultaneous video output, maximum resolution of HDMI
is 4K - AI by Camera: Face detection, perimeter protection, IVS, people
counting, heat map, and SMD - Supports remote configuration and management of IPC, such as set
ting parameters, getting information, and upgrading IPC of the same
model in batches
Functions:
Perimeter Protection by Camera: Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improving alarm accuracy.
Face Detection by Camera: Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing, and then output the best face snapshot.
SMD Plus by Camera: With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
DMSS: Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to the device and then recorded in it.
TiOC 2.0
What is TiOC 2.0?
With its foundation from the previous generation of TiOC, a variety of new innovative technologies are introduced in the latest TiOC 2.0 for the first time, achieving breakthroughs and quality improvements in illuminators, audio and images. At the same time, TiOC 2.0 can be integrated with alarm system through software upgrades. It provides better ecosystem that offers more convenient operation and better user experience.
Smart Dual Light
• Smart Illumination Mode (Default): Switch between IR Mode and warm light when target is detected.
• IR Mode (Optional): Only the IR illuminator is ON. It is suitable for scenes where supplementary warm light is not required, significantly reducing light pollution.
• Warm Light Mode (Optional): Only the warm light is ON. It is suitable for scenes that require color video footages.
VoiceCatcher Technology
• Newly-designed Dual Mic Array intercepts external circuit interference.
• Audio pick-up distance is increased by 7 meters compared with the previous version of TiOC in a lab environment.
• The Dahua VoiceCatcher reduces noise and extracts audible audio signals.
Better Image
• First Dahua camera powered by OPC (Optical Path Technology). It corrects the refraction angle of different light path. With F1.0 large aperture lens, it outputs brighter and clearer black & white images.
• 4K Real-time: Smooth 4K real-time images at 30 fps even when AI is enabled, with high brightness using F1.0 large aperture.
Easy Operation
• Alarm-in Port: Allows alarm receiving or one-tap disarming through the alarm system interface.
• One-tap Disarming: Turns on/off the warning light and siren via the DMSS or alarm-in port.
• Alarm Sounds: Offers 11 built-in sounds and supports importing of custom voice audio for different scenarios.
AI Features
SMD 4.0: Reduces false alarms caused by animals
With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.
Perimeter Protection
The perimeter protection function based on tripwire and area intrusion sends an alarm only when unwanted movements triggered by human or vehicle targets occur, saving users from unnecessary actions caused by false alarms.
AI SSA
With the continuous development of video surveillance and AI, the demand for images with higher quality is also increasing.
The Dahua AI SSA (Scene Self-adaption) technology is based on deep learning algorithm that can intelligently identify multiple scenes and adjust to their optimal images.
Auto Tracking 3.0 (PTZ)
Smooth Tracking Process
Combined with PFA 3.0 algorithm (a deep fusion of intelligent algorithms and focusing algorithms), it realizes touchless focusing during the tracking and capturing process.
Long Tracking Distance
With the Automatic Tracking 2.0 algorithm as its foundation, the requirements on the tracking size of the target are further reduced, making the target size smaller and the tracking distance longer. The tracking distance of Automatic Tracking 3.0 can reach up to 870 meters.
Applications
Private Places
• Less Light Pollution: Less use of white light means less light pollution
• Active Deterrence: Warn off intruders during the intrusion
• Color Monitoring: Presents color alarm videos
• Scenarios: Villas, shops, warehouses, etc.
Public Areas
• Active Deterrence: Customized sounds and light alarm to warn the target in the area
• Accurate Detection: Focuses on human and vehicle targets to accurately identify real targets
• Ecosystem: One-tap disarming with alarm-in port or DMSS.
• Scenarios: Fire exits, emergency exits, etc.
