Description

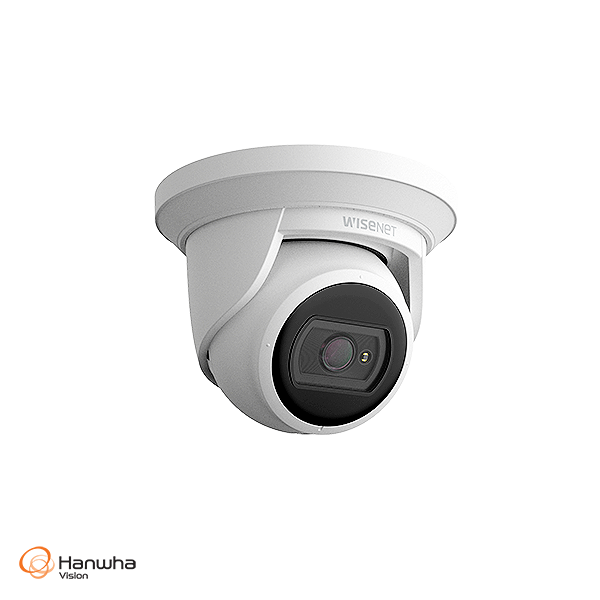

Introducing the CT-ANE-L7012R Hanwha Vision 4MP H.265 NW IR Flateye Camera, a state-of-the-art surveillance solution designed to provide unparalleled security and monitoring capabilities. With its innovative features and robust design, this camera delivers exceptional performance in any environment.
Featuring a high-resolution 4 megapixel (2560 x 1440) sensor, this camera captures crisp and detailed images with stunning clarity. Whether it's day or night, the built-in 3mm fixed lens and powerful IR illumination provide outstanding low-light performance, ensuring that every detail is captured accurately.
With support for 30 frames per second at all resolutions (H.265/H.264), this camera delivers smooth and seamless video playback, allowing you to monitor your surroundings with confidence. The H.265/H.264 and MJPEG codec support, along with multiple streaming capabilities, ensure efficient storage and bandwidth usage without compromising on image quality.
Equipped with advanced features such as Day & Night (ICR) functionality and Wide Dynamic Range (WDR) up to 120dB, this camera delivers clear and balanced images in challenging lighting conditions. Additionally, intelligent video analytics including defocus detection, directional detection, motion detection, enter/exit detection, and tampering detection provide enhanced security monitoring and alerting capabilities.
With a Micro SD/SDHC memory slot supporting up to 32GB of storage and Power over Ethernet (PoE) capability, this camera offers flexible installation options and convenient local storage solutions. The Hallway view and WiseStream II support further enhance usability and efficiency, making it an ideal choice for a wide range of surveillance applications.
Built to withstand the rigors of outdoor use, this camera boasts an IP67 weatherproof rating, ensuring reliable operation in harsh weather conditions. Additionally, its IK10 support provides protection against vandalism and physical damage, ensuring long-lasting durability and performance.
Trust the CT-ANE-L7012R Hanwha Vision 4MP H.265 NW IR Flateye Camera to provide superior surveillance capabilities and peace of mind for your security needs. Invest in the best and protect what matters most.
CT-ANE-L7012R
Hanwha Vision 4MP H.265 NW IR Flateye Camera
FEATURES
- 4 megapixel (2560 x 1440) resolution
- Built-in 3mm fixed lens
- 30fps@ all resolutions (H.265/H.264)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering
- Micro SD/SDHC memory slot (Max. 32GB), PoE
- Hallway view, WiseStream II support
- IR viewable length 20m
- IP67, IK10 support
| Product Short Info | Hanwha Vision 4MP H.265 NW IR Flateye Camera |
|---|---|
| Resolution | 4 Megapixel |
| Lens | 3mm Fixed |
| IR | Yes |
| Max FPS at all resolutions | 30 FPS |
| WDR | 120dB |
| Codec Supported | H.264, H.265, MJPEG |
Datasheets
WISENET A SERIES
The Wisenet A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Being affordable without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
A Series Overview
Essential camera features, professional performance
Wisenet A series cameras offer clear and accurate imaging with a variety of options including essential form factors, 4MP and 2MP resolutions, and lens types to meet your unique security challenges and circumstances.
4MP and 2MP camera resolution
The Wisenet A series camera line is available in 4MP and 2MP resolution with a variety of fixed and motorized varifocal lens options, producing a clear and crisp image no matter what your surveillance scenario requires.
120dB True WDR
True WDR backlight compensation optimizes images captured in difficult lighting situations.
Realistic image reproduction with LDC
Lens distortion correction technology produces natural-looking images without the distortion often created by conventional camera designs equipped with wide-angle lenses.
Hallway view mode
By rotating the lens on Wisenet A series cameras by 90°, 180°, or 270°, a vertical field of view may be achieved to help better monitor long corridors or hallways
WiseStream II compression technology
Our proprietary compression technology enables storage and bandwidth savings of up to 75% when compared to the use of H.264 compression alone.
30fps real-time video transmission
Wisenet A series cameras in 4MP and 2MP resolution both provide smooth and clear real-time monitoring by transmitting streams at up to 30fps.
License-free Intelligent Video Analytics
Hanwha Vision’s license-free intelligent video analytics technology operates on the edge, alerting operators to abnormal activities in real time. This increase in situational awareness can help to prevent or
minimize damage or harm during an event by prompting a rapid and efficient response.
Intelligent Video Analytics
Motion detection - Triggers an event when
motion is detected in a designated virtual zone
Tamper detection - Triggers an event if the camera
lens is covered or an unauthorized movement that
changes the field of view is detected
Virtual line detection - Triggers an alarm when
objects are detected crossing a pre-defined virtual
line or perimeter
Enter/exit detection - Detection of objects
entering or exiting a designated area
Defocus detection - Triggers an event if loss of
focus is detected (varies by model)
Affordable high quality NVR solutions
Wisenet A series 4CH, 8CH, and 16CH NVRs support maximum camera resolutions of up to 8MP and H.265, H.264, and MJPEG codecs. The improved installation wizard and 4K resolution monitor output make system
setup simple and monitoring crystal clear. Increased accessibility options include the use of P2P connections,
the Wisenet Mobile application, and on PC or Mac with Wisenet Viewer CMS.
Wisenet Viewer CMS
Wisenet Viewer is a free standalone application that can monitor and control multiple Wisenet NVR/DVR devices on your network in real-time from your Mac or PC
Key Features:
Dynamic Drag and Drop Layout Panel: Easily arrange your surveillance layout with a user-friendly drag and drop interface, ensuring intuitive customization.
Custom Layouts and Device Grouping: Tailor your surveillance setup to fit your specific needs by creating custom layouts and grouping devices for efficient monitoring.
Search and Play Recorded Video: Quickly search through recorded video footage and seamlessly play back events for comprehensive review and analysis.
Utilize Multiple Monitors: Enhance your monitoring capabilities by utilizing multiple monitors, maximizing visibility and efficiency.
Event Trigger and Rule Management: Set up event triggers and manage rules to automate responses to detected incidents, streamlining your security operations.
Simple Remote Connection (DDNS/P2P): Easily establish remote connections for monitoring via Dynamic Domain Name System (DDNS) or Peer-to-Peer (P2P) technology, ensuring convenient access from anywhere.
Display Web Pages: Integrate additional information or resources by displaying web pages directly within the surveillance interface, enhancing situational awareness.
Play Media Files in Layout: Seamlessly incorporate media files into your surveillance layout, providing additional context or information when needed.
Log Search (Event, System, and Audit): Access comprehensive logs for events, system activities, and audits, enabling thorough analysis and accountability.
Advanced User Permission Management: Maintain control over access and permissions with advanced user management features, ensuring security and compliance.
Real-Time System Monitoring at a Glance: Keep track of system performance and status in real-time, providing instant insights into the health and operation of your surveillance infrastructure.
Built-In AI Metadata Search: Harness the power of artificial intelligence to search through metadata, enabling rapid and accurate retrieval of relevant information for enhanced security and efficiency.
