Description
The Wisenet Q Surveillance Kit includes 2x Wisenet Q Series 5MP H.265 NW IR Flateye Cameras and a 4CH 8M H.265 NVR with PoE Switch, plus a 2TB HDD. The cameras are equipped with max. 5MP resolution, 2.8mm/4mm fixed lens, 0.15Lux color, and 0Lux B/W/IR LED on. The NVR supports up to 4CH 8MP resolution and features WiseStream support, H.265/H.264/MJPEG codecs, and 40Mb. With Hallway view, Defocus detection, and IR viewable length of 20m, this is an ideal system for surveillance.
CT-QNE-KIT-4CH2CAM
DESCRIPTION
Wisenet Q Surveillance Kit with 2x Wisenet Q Series / 5MP H.265 NW IR Flateye Camera and 4CH 8M H.265 NVR with PoE Switch plus 2TB HDD.
CT-QNE-KIT-4CH2CAM includes :
- 2x CT-QNE-8011R Cameras
- CT-QRN-430S 4CH NVR
- 2TB HDD
FEATURES

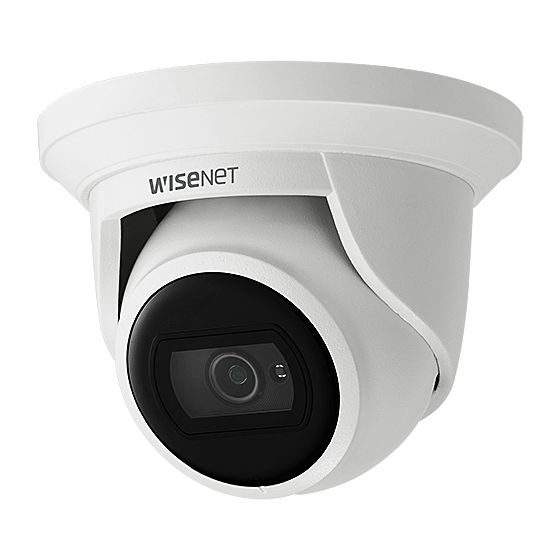

Cameras – CT-QNE-8011R
- Max. 5MP (2592 x 1944) resolution
- 2.8mm/4mm fixed lens
- 0.15Lux (Color), 0Lux (B/W, IR LED on)
- Max. 30fps@5MP (H.265 / H.264)
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream II support
- IR Viewable length 20m
- LDC, PoE
NVR – CT-QRN-430S 4CH
- Up to 4CH 8MP resolution
- H.265, H.264, MJPEG codec
- WiseStream support
- 40Mbps network camera recording
- Plug & play by 4 PoE port
- Max. 1 HDD(Up to 6TB)
- HDMI, VGA output
- P2P service (QR code connect)
WISENET Q series
The Q series delivers sharp and clear image quality with H.265 compression, ideal in securing small to medium sized applications such as retail, banking and offices. Enhanced features include intelligent video analytics, Wide Dynamic Range, Built-in IR, Hallway View, & WiseStream II.
Wisenet Q series Network Cameras
High Quality Cameras Offering Cost Effective Solutions
Wisenet Q series cameras are affordable products equipped with features essential to the creation of a safe and secure environment. Being able to deliver sharp and clear images in 5MP & 2MP makes it an ideal product in securing small to medium sized spaces such as retail or banking spaces and offices
Compact design with affordable price
5MP & 2MP resolution
Maximum 30fps framerate
WDR 120dB
WiseStream II
Intelligent video analytics
IR viewable length up 30m
Hallway view (Rotate 90° / 270°)
Micro SD/SDHC/SDXC memory slot
Video output CVBS, PoE
5MP and 2MP resolutions
The Wisenet Q series is available in two resolution options to give you the freedom to choose the cameras that best fits your security needs. 5MP Q series cameras can support up to 30fps, providing real-time video with 2592 x 1944 resolution and up to 15fps of WDR performance providing crisp and vivid monitoring.
Various lens options
Fixed Lens
The Wisenet Q series fixed-lens models are available with focal lengths of 2.8mm, 4.0mm and 6.0mm. The 2.8mm lens is available if you prefer a wide-angle view. If an area to monitor is located further away from the camera, the 6.0mm lens can be utilized
Varifocal Lens
The 3.2 ~ 10mm (3.1x) varifocal lens, created by Hanwha echwin’s own advanced technology, offers greater flexibility in the field of view. The motorized varifocal option provides quick and easy focus using the simple focus feature
Enhanced video analytics
Wisenet Q series cameras are equipped with a wide range of Intelligent Video Analytics features, helping users detect different types of incidents and have full situational awareness of their facility
Reduce bandwidth requirements by up to 99% usingWiseStream II
Using WiseStream II, Hanwha Techwin’s own video ompression technology, with H.265 compression allows Wisenet Q series cameras to reduce bandwidth usage by up to 99% when compared to H.264 technology. As a result, system costs, such as network infrastructure and data storage, are also greatly reduced.
Analog video output for easier installation
The Wisenet Q series cameras support analog video (CVBS)
output for easier installation. During the installation, a
monitor can be connected to the monitor port to adjust
and configure the viewing angle and the focus.*
Hallway view for monitoring vertical shaped areas
Conventional horizontally oriented video streams waste bandwidth and storage along their edges in narrow areas such as store aisles or long hallways. Hallway view created a vertically oriented 3 : 4 or 9 : 16 ratio video stream to maximize usable image space in a narrow environment.
Business intelligence for smarter retail
People Counting
People counting applications within a store allow marketing personnel to identify the busiest times of the day, helping them manage customer flow and better understand buying patterns.
HDMI live video output for Public View Monitor
Public view monitors are a convenient way of promoting the safety of retail customers and staff for store management. Wisenet Q mini cameras support HDMI video output for easy connection with Public View Monitors.
